Plastic Calendering Line

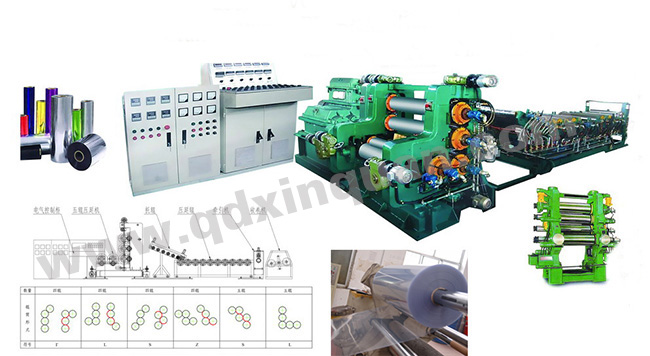

This production line is a plastic calendering unit, which can be used by plastic products factories to produce various PVC rigid and semi-rigid plastic sheets, and can also be used to produce high-filled plastic sheets. The five-roll plastic calendering unit is composed of a five-axis calendering machine and a cooling coiling auxiliary machine, and the thickness of the produced products can reach 0.03-0.90mm.
| The main technical parameters | ||
| Product thickness (mm) | 0.03-0.08mm | 0.08-0.90mm |
| Yield (kg/h) | 350-700kg/h | 700-1300kg/h |
| Main motor power r (KW) | 55kw*2sets, 75KW*3 sets, Roller line speed: 0-40m/min | |
| Hardened gear box | 5 units, transmission accuracy grade 6 | |
| constant temperature gas station | 5 sets, heating power | |
| Calendering auxiliary machine configuration Total power 458KW, heating power 220KW, actual power consumption 350KW/H | ||
